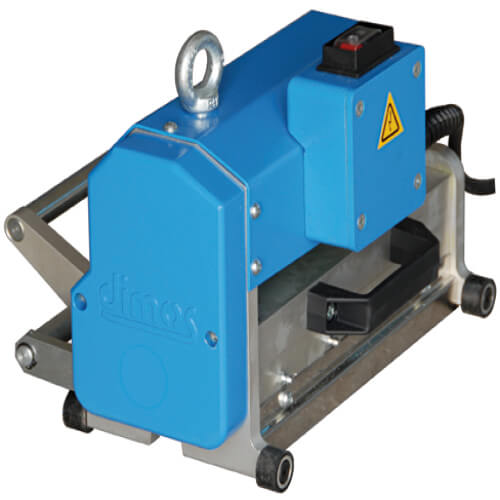

DIPRO-SRT Crimping machine
The DIPRO-SRT crimping machine creates crimp profile n° 1 in a single run.
Beskrivelse
Technical description
220V single phase Power 0.72 kW Crimping speed 9 m/min Seal height 25 mm Standing seam crimping in a single run Possibility of closing only the first fold by working on six rollers to create siding Cutting rollers (optional extra) Heating kit (optional extra) Vertical use Crimping of flat and arched roofs up to 2 m radius and up to 1.5 m radius with adapter washers (included)
OUR PRODUCTS ADDED VALUE:
- +Multipurpose Vertical use
- + Crimping of flat and arched roofs
- + Increases productivity: Double crimping profile n° 1 in a single run
- + Precision: High-quality crimping thanks to 8 drive rollers
CHARACTERISTICS
| Length | 380mm |
| Width | 300mm |
| Top | 250mm |
TECHNICAL SPECIFICATIONS
| Acier 400 N/mm² | 0,6mm |
| Alu A5 1/2 dur H24 | 0,7mm |
| Cuivre 1/4 dur | 0,6mm |
| Inox 470 N/mm² | 0,5mm |
| Zinc | 0,8mm |
TILLEGSUTSTYR
Heating Kit for Dipro SRT & SRTS Crimping Machines
