Innebygd saks og lengdemåling
Høy produktivitet: serieproduksjon
Veldig enkel å bruke: intuitiv meny og verktøyfri konfigurasjonsendring
Høy kvalitet, profilering av alle metaller uten justering
Spesifikasjoner:
Lengde 1,54 m
Bredde 1,23 m
Høyde 1,00 m
Vekt 500 kg
Arbeidsbredde 250–840 mm
Profileringshastighet 15 ml / min
Technical description
Straight and treaded deck profiling in profile No. 1 Automatic roller adjustment Tool free configuration Longitudinal and cross section cutting (motorized) Profiling configuration Series & multi-programme management Operator protection thanks to bellows on the inlet and outlet guides Lifting rings and crosspieces for forks Foldable input guides Profiling speed: 15 m/min
Teknisk kapasitet
Acier 400 N/mm² – 0,7 mm
Alu A5 1/2 dur H24 – 0,8 mm
Cuivre 1/4 dur – 0,7 mm
Inox 470 N/mm² – 0,5 mm
Zinc – 0,8 mm

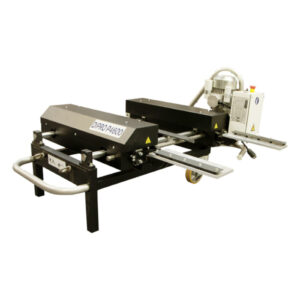

The roll forming machine is a machine that allows you to shape standing seam roof and cladding bins from metal sheets. Optimal profiling quality Fully automatic High productivity and specially designed ease of use.
OUR PRODUCTS ADDED VALUE:
- +Sigma 3.0 profiling train: adaptable to a maximum of materials
- + No tools required
- + 2-pass treader deck
- + All configurations of male and female profiles
- + Resistive 7» touch screen: configuration of the site in a few seconds
- + Simplified mode (quick start) and expert mode (program sequence)
- + Rafter cut calculation
- + High cutting accuracy: across and longitudinal (slitting)
- + Tray length along the side (accuracy of 0.5mm/m)
- + High profiling speed
