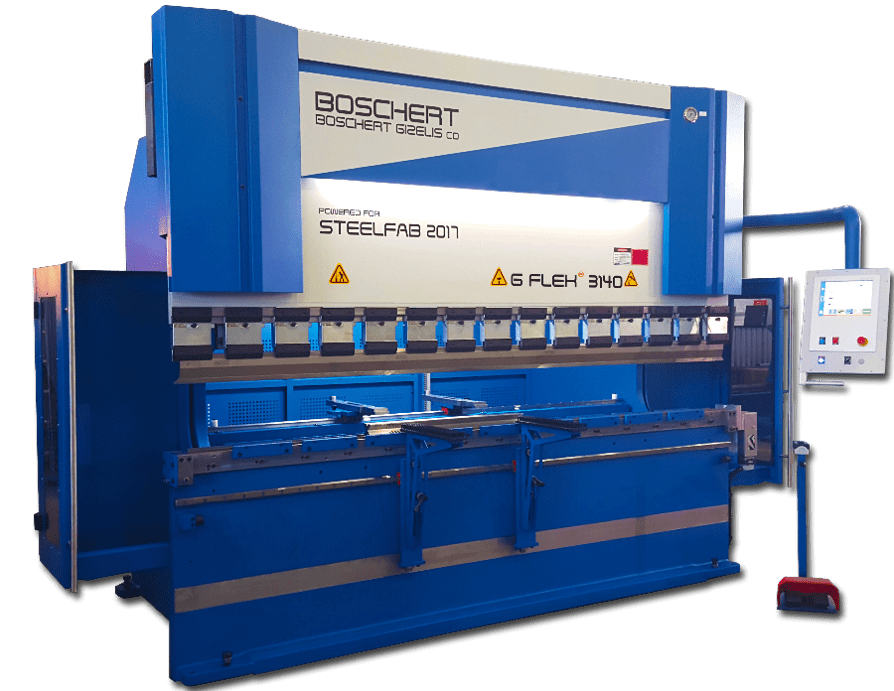

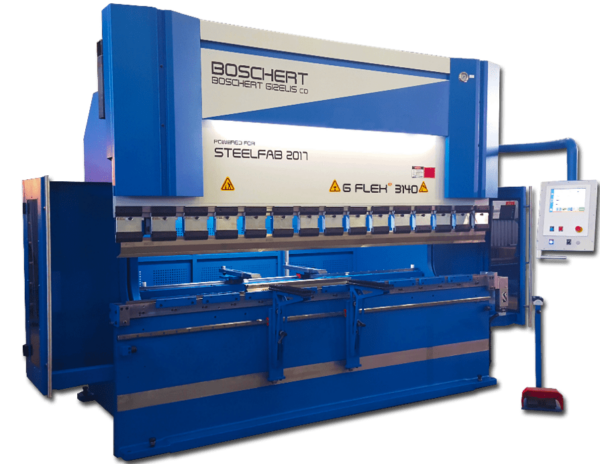

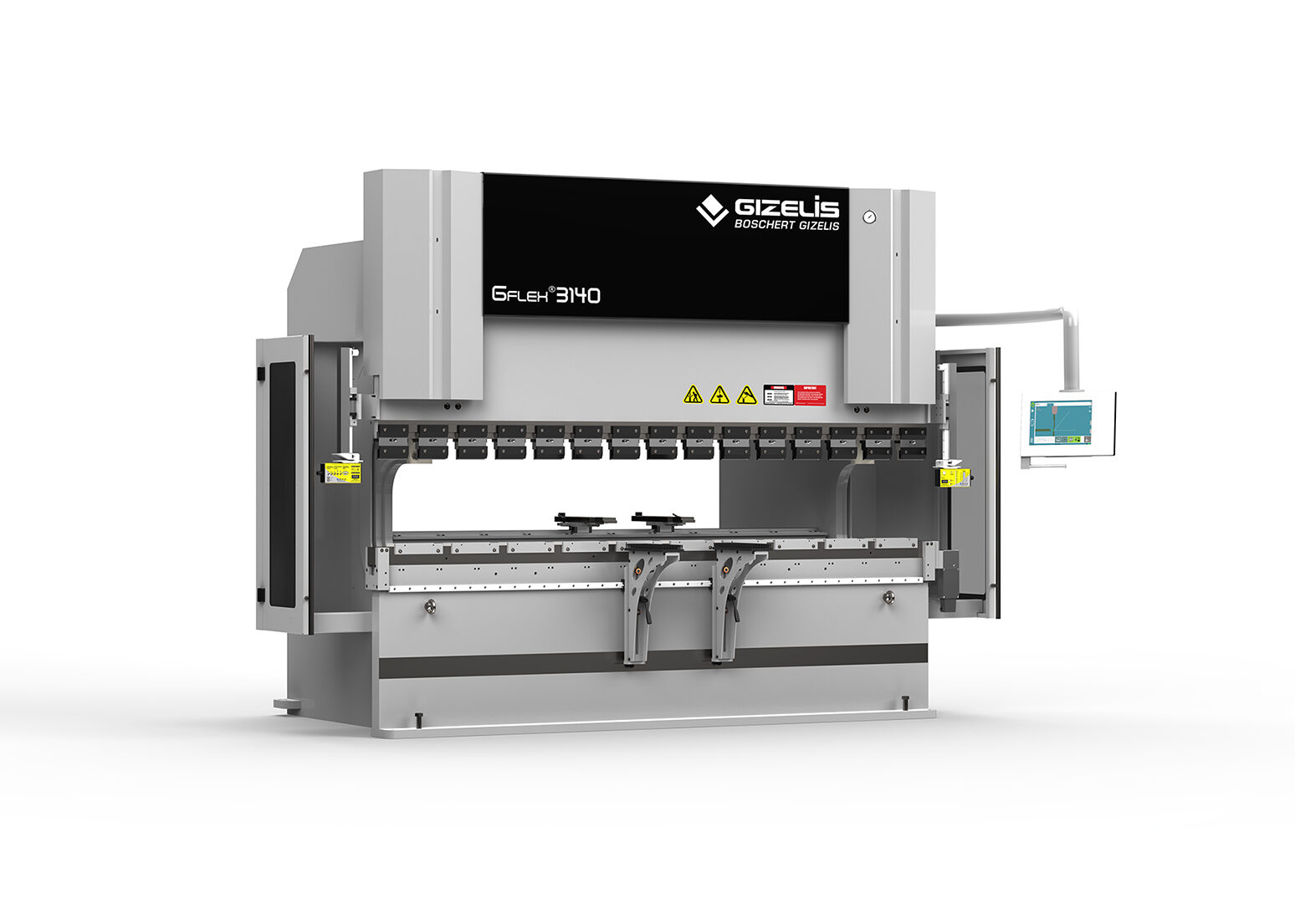

G-Flex
Innstegsmodellen, leveres som fast oppsett med 2 akse bakanslag, cnc-bombering, frontsupport, og CybTouch 12 PS styring.
Beskrivelse
High level press brakes up to 4-axis. The best “value for money” choice.
Standard equipment
- 2D graphic controller, 12” color Touch-Screen, CybTouch12
- Y1, Y2 independent hydraulic cylinders, proportional valve technology
- Extra welded-steel side frames
- 2-axis back gauge system, X-R
- Fast mechanical upper clamping with side tooling extraction
- CNC Crowning
- Front Supports with brushes, movable on linear guide, height adjustable
- Efficient, low-noise and accurate hydraulic system
- Beam movement on two double roller bearings on each side
- Strong and stable construction
- Throat: 400mm
- Daylight: 515mm
- Stroke: 250mm
* Working speed is limited according to safety regulations for CE countries.
Tilleggsinformasjon
| Modell |
G Flex 2080 ,G Flex 3080 ,G Flex 3140 ,G Flex 3175 ,G Flex 3210 |
|---|
