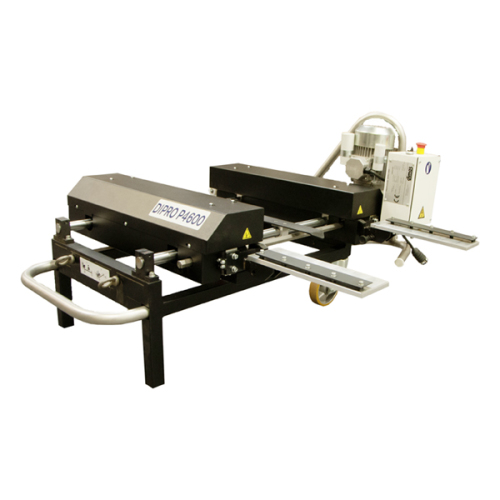

DIPRO P4600-220V profiling machine
The roll forming machine is a machine that allows you to shape standing seam roof and cladding bins from metal sheets. Special site: maximum mobility and robustness at a lower cost.
Beskrivelse
Technical description
Straight and treaded deck profiling in profile No. 1 Automatic roller adjustment Compact machine to ensure easy storage Its handle and wheels make it easy to transport, in the workshop, in the truck and especially on site and requires only one person Foldable input guides Profiling speed: 10 m/min.
OUR PRODUCTS ADDED VALUE:
- +DIMOS INNOVATION
- + Gamma profiling train: maximum compactness
- + no more transporting trays from the workshop
- + unlimited tray length directly on the roof
- + Robust: bumper guaranteeing its longevity on-site
- + Space saving truck transport and storage: vertical position
- + 160kg ultra handy: 20kg at arm’s length on hand trolley with retractable handlebar
CHARACTERISTICS
| Length | 1290 mm |
| Width | 900 mm |
| Top | 750 mm |
TECHNICAL SPECIFICATIONS
| Acier 400 N/mm² | 0,7mm |
| Alu A5 1/2 dur H24 | 0,8mm |
| Cuivre 1/4 dur | 0,7mm |
| Inox 470 N/mm² | 0,5mm |
| Zinc | 0,8mm |
